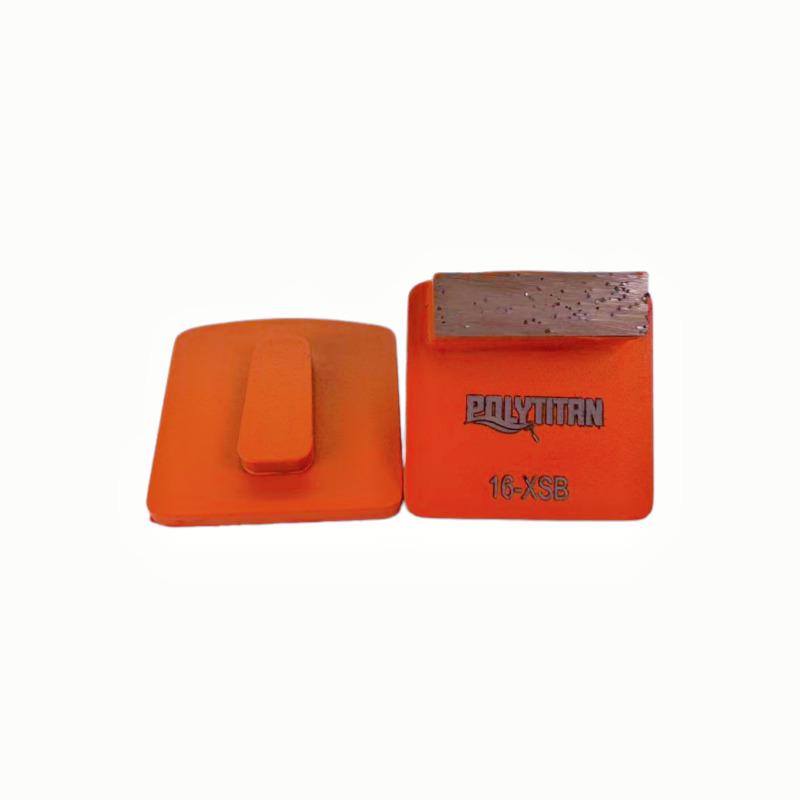

Husqvarna Redi-Lock Diamond Grinding Segments | Bar & Dot
Husqvarna Redi-Lock Diamond Grinding Segments | Bar & Dot
Fits: Husqvarna
SKU:
In-stock diamonds ship within 24 hours from Minnesota.
Not sure which bond or grit? Call (952) 206-7219
Description
Description
Get consistent, professional-grade results on every job with our single segment diamond grinding shoes, engineered to fit Husqvarna Redi-Lock style quick-change grinding plates. Each segment is precision-cast for reliable lock-in fit, fast material removal, and long tool life — whether you're prepping concrete for epoxy and polyaspartic coatings, stripping mastic and paint, leveling high spots, or running an initial cut before polishing.
Available in bar or dot segment shape, and in four bond hardnesses so you can match the tooling to your slab instead of fighting it.
How to Choose the Right Bond for Your Concrete
Diamond bond hardness works in reverse to concrete hardness — the harder the slab, the softer the bond you need, so the matrix wears away fast enough to keep exposing sharp new diamond instead of glazing over. Here's the breakdown:
- Extra Soft Bond — Built for super hard, dense concrete (high-PSI slabs, trowel-finished floors). The softest matrix wears quickly to continuously expose fresh diamond on the toughest surfaces.
- Soft Bond — Matched to hard concrete. Wears fast enough to stay sharp on tough slabs while holding up slightly longer than Extra Soft.
- Medium Bond — The go-to choice for medium-hardness concrete and the most common slab condition on the average job site. Balances cutting speed with segment life.
- Hard Bond — Designed for soft, abrasive concrete. A harder matrix resists premature wear from soft, aggregate-heavy slabs that would burn through a softer bond too fast.
Not sure what you're working with? Do a quick scratch test with a metal key or nail — if it scratches easily, you're likely dealing with soft concrete (reach for Hard bond); if it barely marks, you're on hard or super hard concrete (reach for Soft or Extra Soft).
Grit Guide
- 14/16 Grit — Aggressive stock removal: coating/mastic removal, leveling high spots, initial cuts on uneven concrete.
- 30/40 Grit — Mid-range transition step between coarse removal and fine grinding.
- 60/70 Grit — Finer cut for smoothing and preparing the surface ahead of polishing or coating application.
Key Features
- Redi-Lock quick-change fit — engineered for Husqvarna Redi-Lock style grinding plates and compatible floor grinders
- Single segment design — available in bar or dot shape
- Four bond options: Extra Soft, Soft, Medium, Hard — matched to slab hardness
- Three grit options: 14/16, 30/40, 60/70
- Ideal for coating and mastic removal, concrete leveling, floor prep before epoxy/polyaspartic/polyurea coatings, and pre-polish grinding
- Cast diamond segments for consistent wear and reliable performance
- In-stock segments ship within 24 hours
Husqvarna Redi-Lock Diamond Grinding…
Match the bond to your concrete
Harder concrete takes a softer bond. The plates are color-coded to the chart on the box.
| Bond | Concrete hardness (Mohs) | Use it for |
|---|---|---|
| Black · Hard bond (HB) | 3-4 | Soft or green concrete |
| Blue · Medium bond (MB) | 5 | Most standard slabs |
| Red · Soft bond (SB) | 5-6 | Hard, dense concrete |
| Orange · Extra soft bond (XSB) | 7-8 | Very hard, polished or burnished concrete |

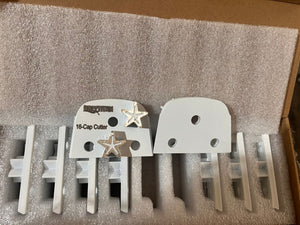

| White · Cap cutter (CC) | 8-9 | The hardest floors. Sold as Cap Cutter Diamonds |
Grit: 16 removes coatings and adhesives fastest, 30 levels and preps for coating, 60 leaves a finer finish.
Not sure how hard your slab is? Call (952) 206-7219 and we'll match a bond to it.
Choose PolyTitan
PolyTitan is more than a supplier — we’re a wholesale partner for contractors who rely on consistent performance and fast turnaround. From diamond tooling and floor prep consumables to resins and coating systems, we make it easier to source what you need, order quickly, and stay profitable.
Better Pricing & Savings
Faster Ordering for Job Crews
Contractor Support That Works
Frequently Asked Questions
Match the bond to the concrete: harder concrete takes a softer bond. Hard bond (black) is for soft concrete, medium (blue) for most slabs, soft (red) for hard concrete and extra soft (orange) for very hard or burnished floors. Not sure? Call (952) 206-7219.
16 grit is for aggressive removal of coatings, adhesives and buildup. 30 grit levels the floor and preps it for coating. 60 grit leaves a finer finish before coating or polishing.
Check the Fits line under the product name. Our Lavina-style plates fit Lavina, Onfloor, Edco, Wolfpack, Workhorse and any grinder with a 3-pin magnetic plate. We also carry sets for SASE, Scanmaskin, Husqvarna Redi Lock and WerkMaster.
Up to 8,000 sq ft, depending on the concrete, the bond and the grit you run.
In-stock diamonds ship within 24 hours from our Minnesota warehouse. Minnesota customers can also pick up in Arden Hills, Monday to Friday, 9 am to 4 pm.
Yes. Crews that buy in volume can get wholesale pricing.
